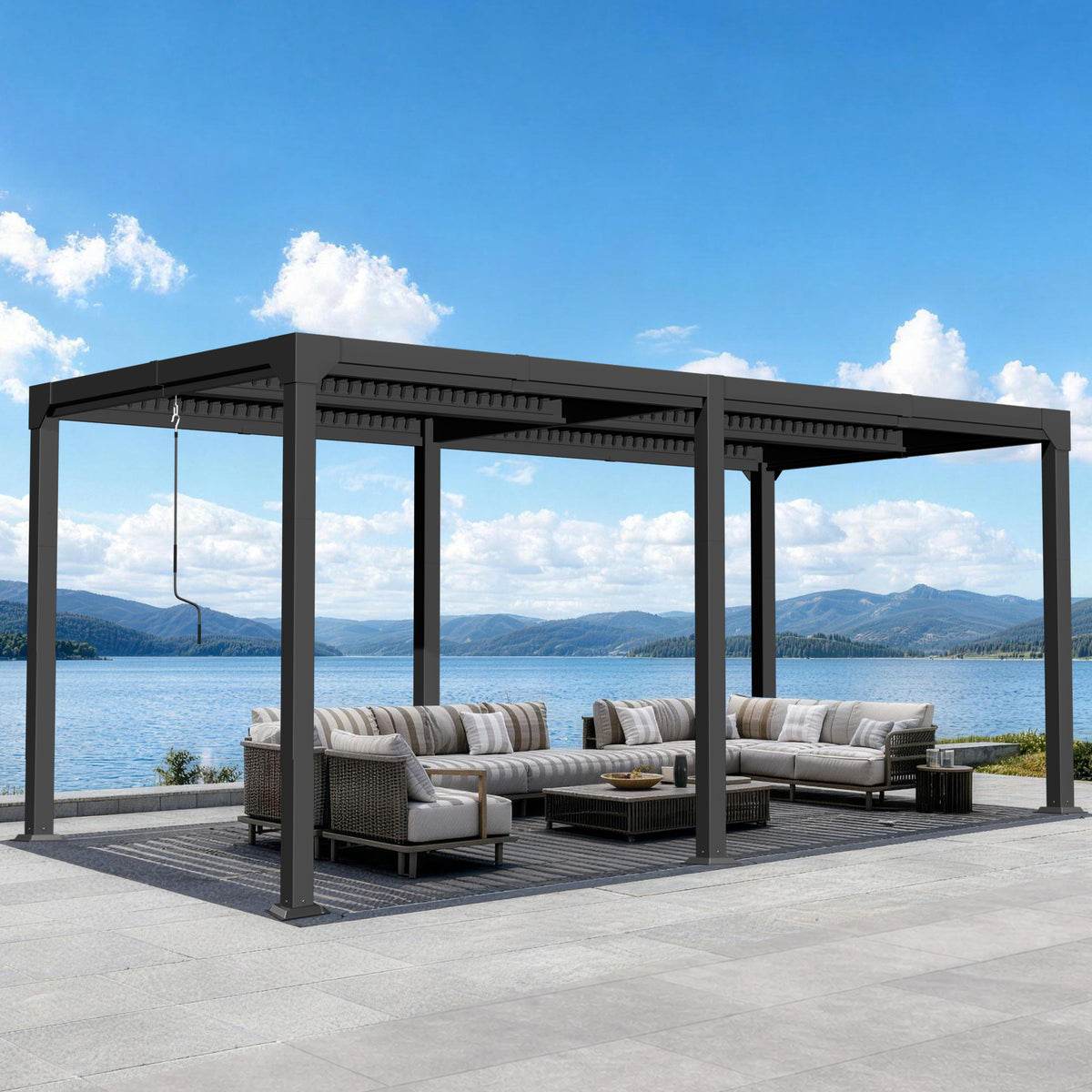

Patioslife Atlantic 3x6m Premium Louvered Pergola with Adjustable Roof Panels, Integrated Gutter System & Freestanding All-Weather Outdoor Shelter for Patio, Deck & Poolside

Patioslife Atlantic — Weatherproof Comfort for Every British Garden

There's a reason so many pergolas end up unused half the year — too hot in summer, drenched the moment it rains, and gathering rust by the second winter. The Atlantic was designed to solve exactly that.

One turn of the crank tilts the metal louvers through a full 87° range — fully open for sunbathing and stargazing, angled for a cooling breeze, or fully closed to seal out a sudden downpour. Whatever the forecast, your patio stays usable.

What makes it different

• Powder-coated metal frame — no rust, no repainting
• Adjustable louvered roof, 0–87° tilt, smooth manual crank
• Weatherproof when closed, with hidden drainage through the posts
• Wind-tested to 130 km/h, certified by Bureau Veritas
• Rated for snow loads up to 50cm

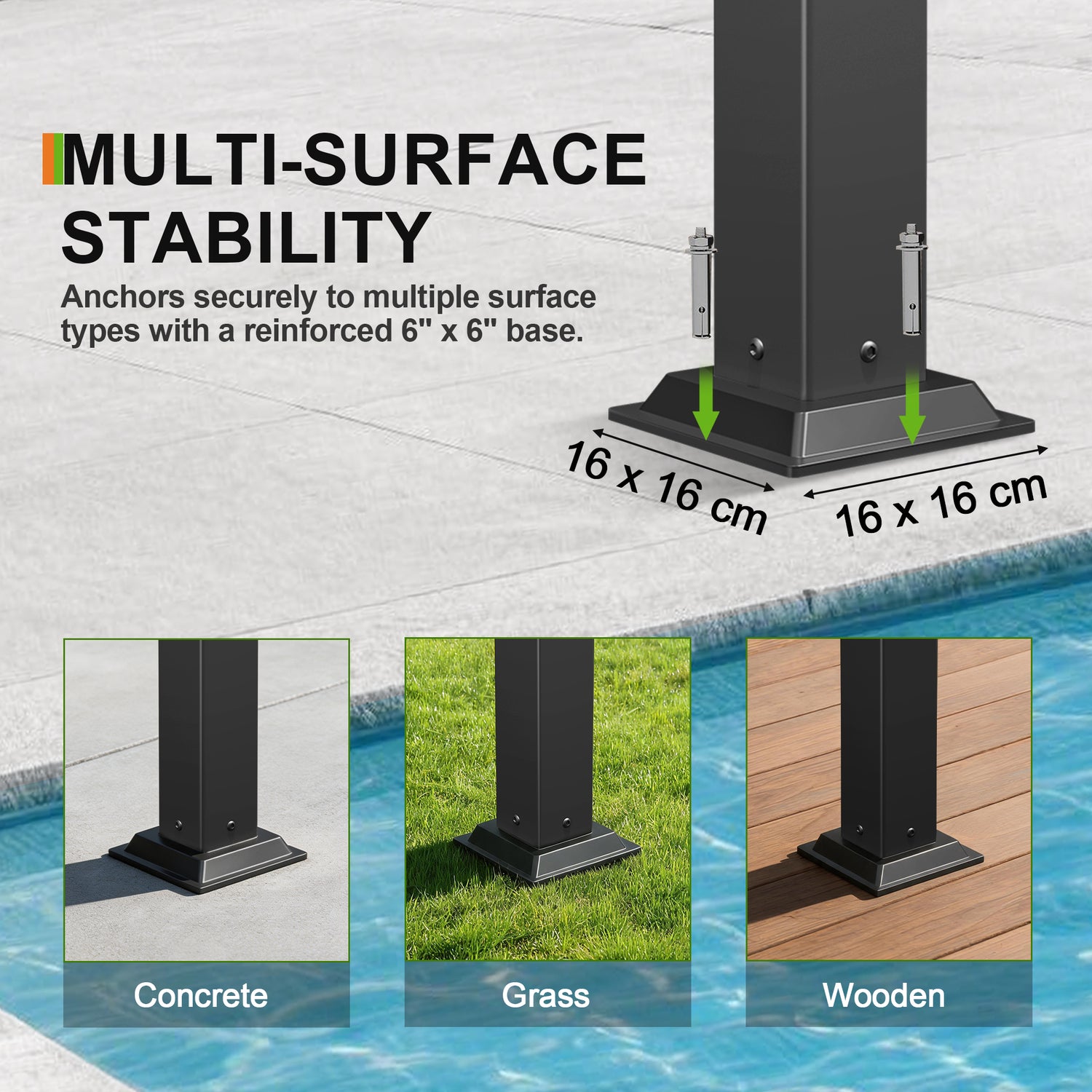

• Freestanding — no wall fixing needed, secured with heavy-duty anchor bolts

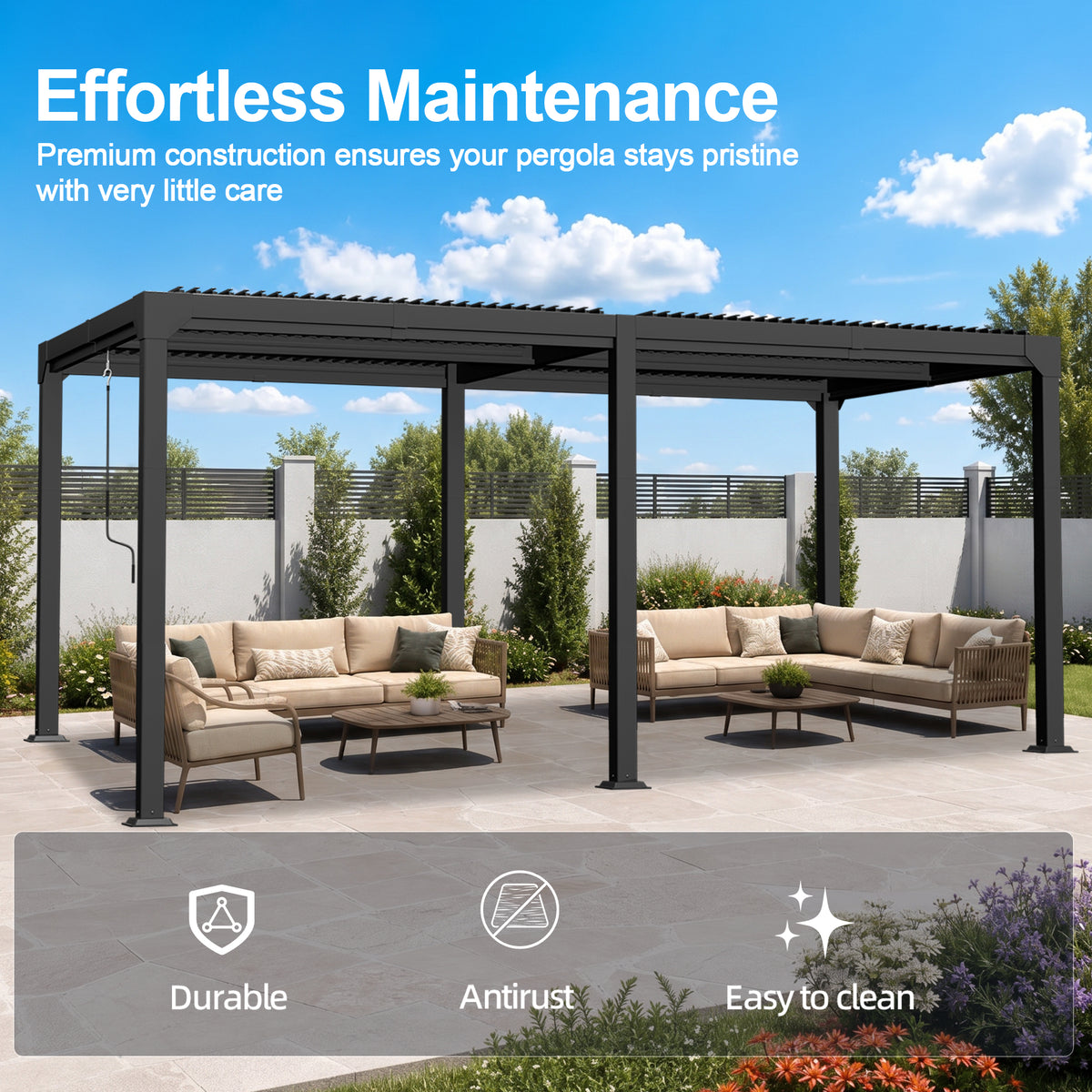

Low maintenance, by design

No repainting, no rust patches to worry about. Just an occasional rinse and a quick annual check are all it takes to keep it looking as good as day one — even after a proper British winter.

Backed with confidence

Every Atlantic™ comes with a 5-year structural warranty and a 45-day return policy, so you can make this decision without the second-guessing.

Available in Charcoal, from 3 x 3m up to 4 x 6m — sized to fit gardens both compact and generous.

Turn your patio into the space you actually want to spend time in, whatever the weather's doing.

✨Trusted & Loved by Our Patioslife Community →  Watch Successful Cases

Specifications

Frame & Structure:

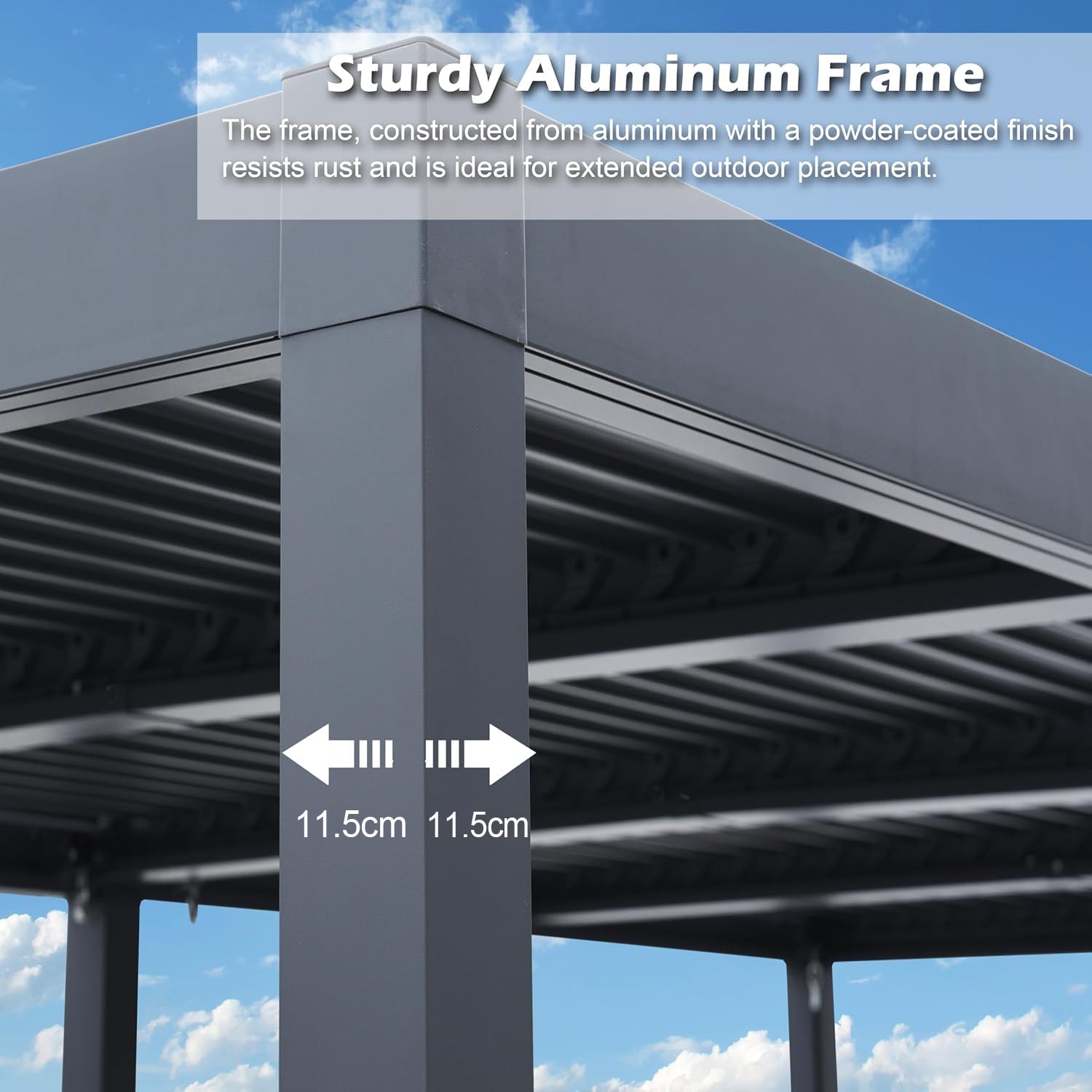

• Frame Material: High-grade Metal

• Surface Finish: Premium Powder-coated finish (Rust-proof and UV-resistant)

• Wall Thickness: Heavy-duty 1.5–2.0 mm profile

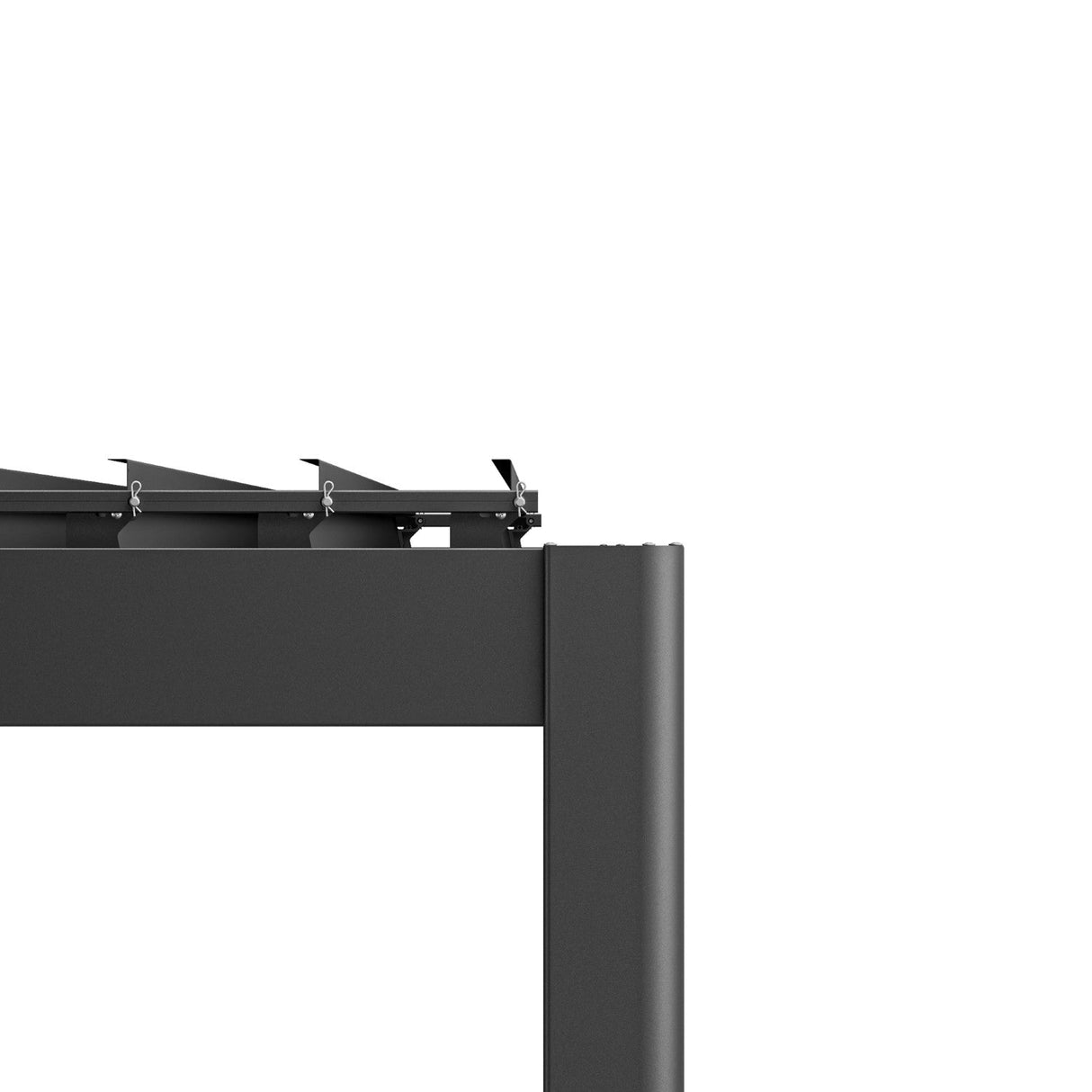

• Beam Dimensions: Robust 160 × 95 mm (with integrated gutter) | Wall Thickness: 1.6–1.7 mm

• Louver Blade Dimensions: Aegis series 160 × 33 mm aerodynamic blades | Wall Thickness: 1.4 mm

• Fasteners & Fittings: Heavy-duty Galvanised steel hardware

Louver System:

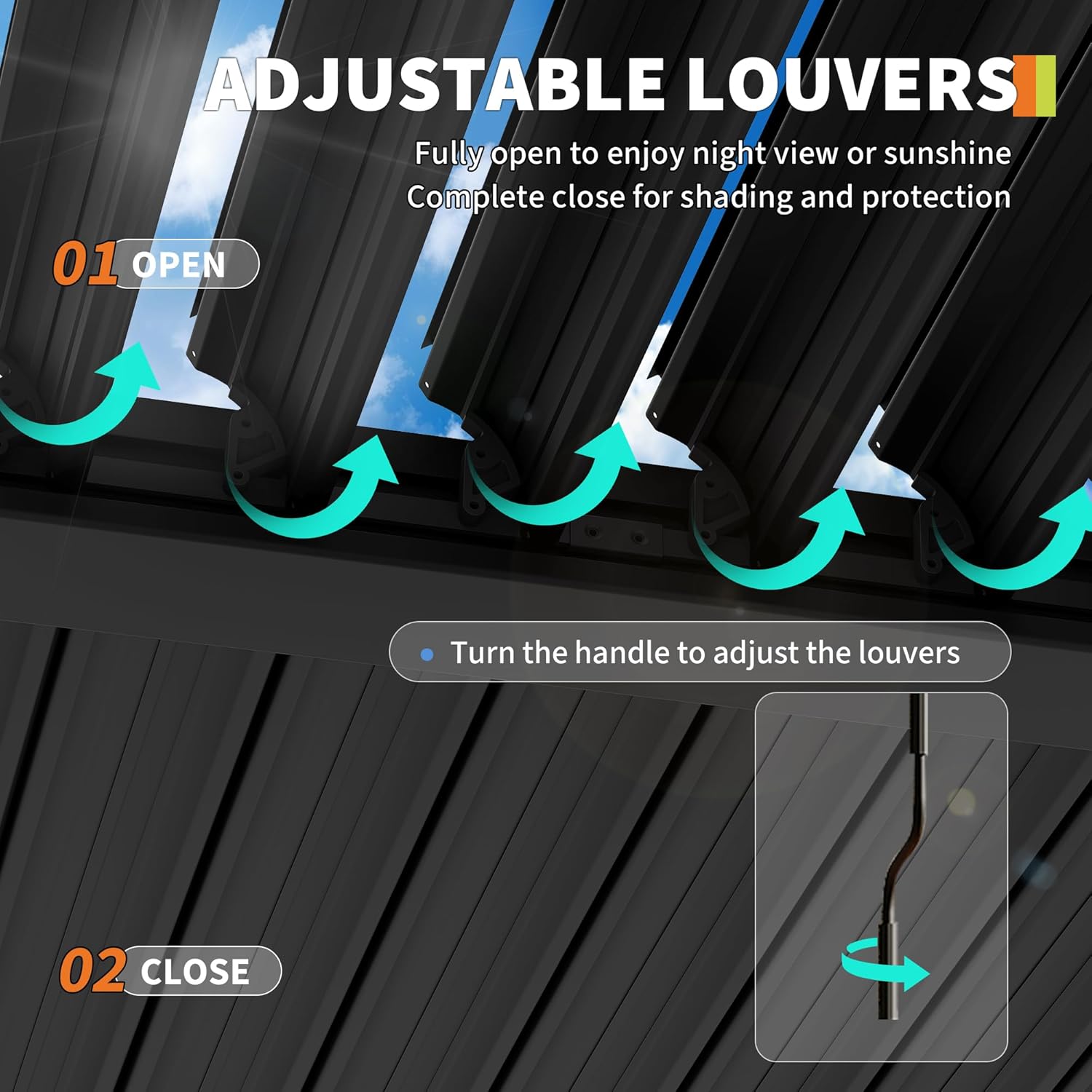

• Tilt Range: Smooth 0°–87° adjustable tilt (from completely open to fully watertight)

• Operation: Effortless Manual hand-crank system

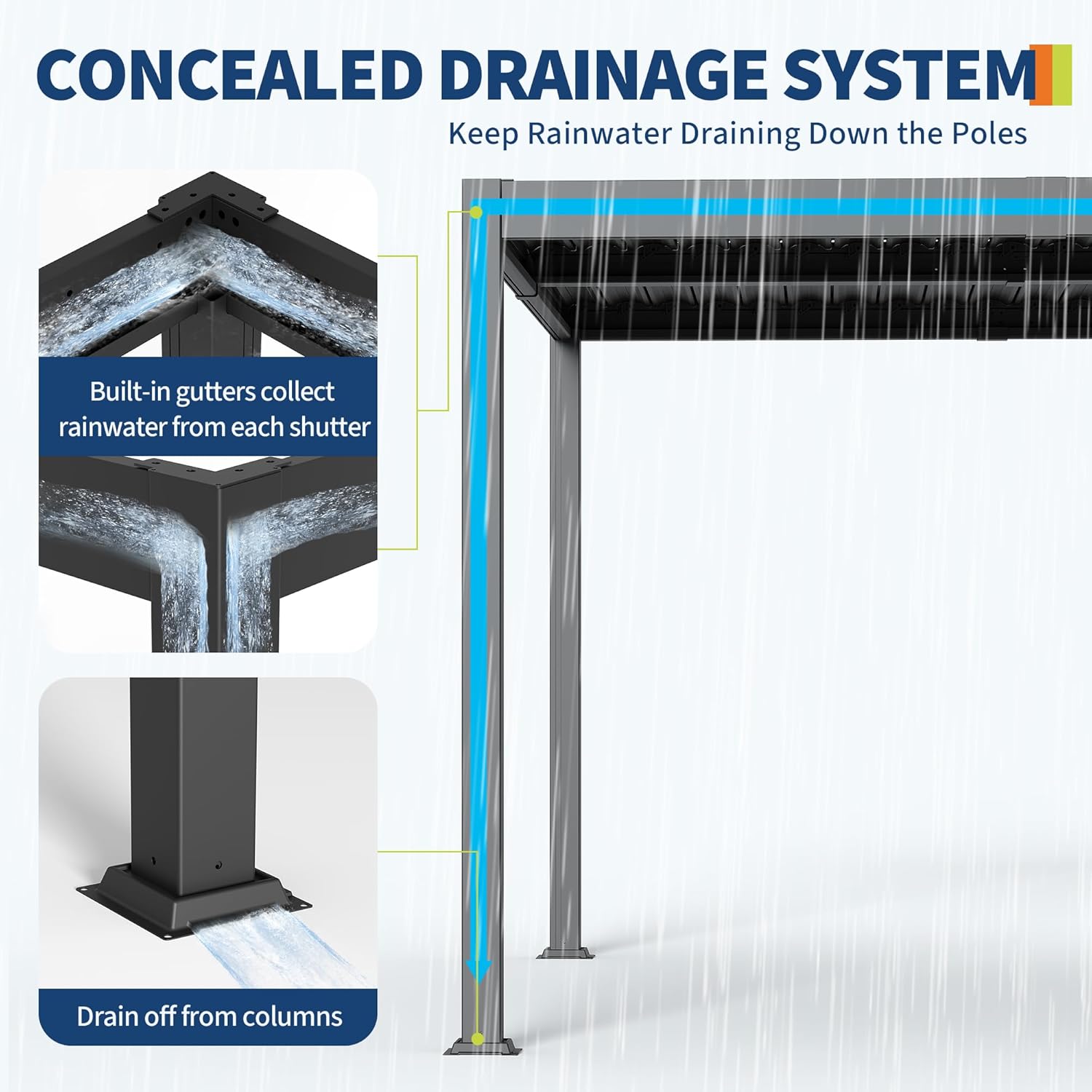

• Drainage: Fully Integrated internal drainage channels, seamlessly routed through the posts

Weather Performance：

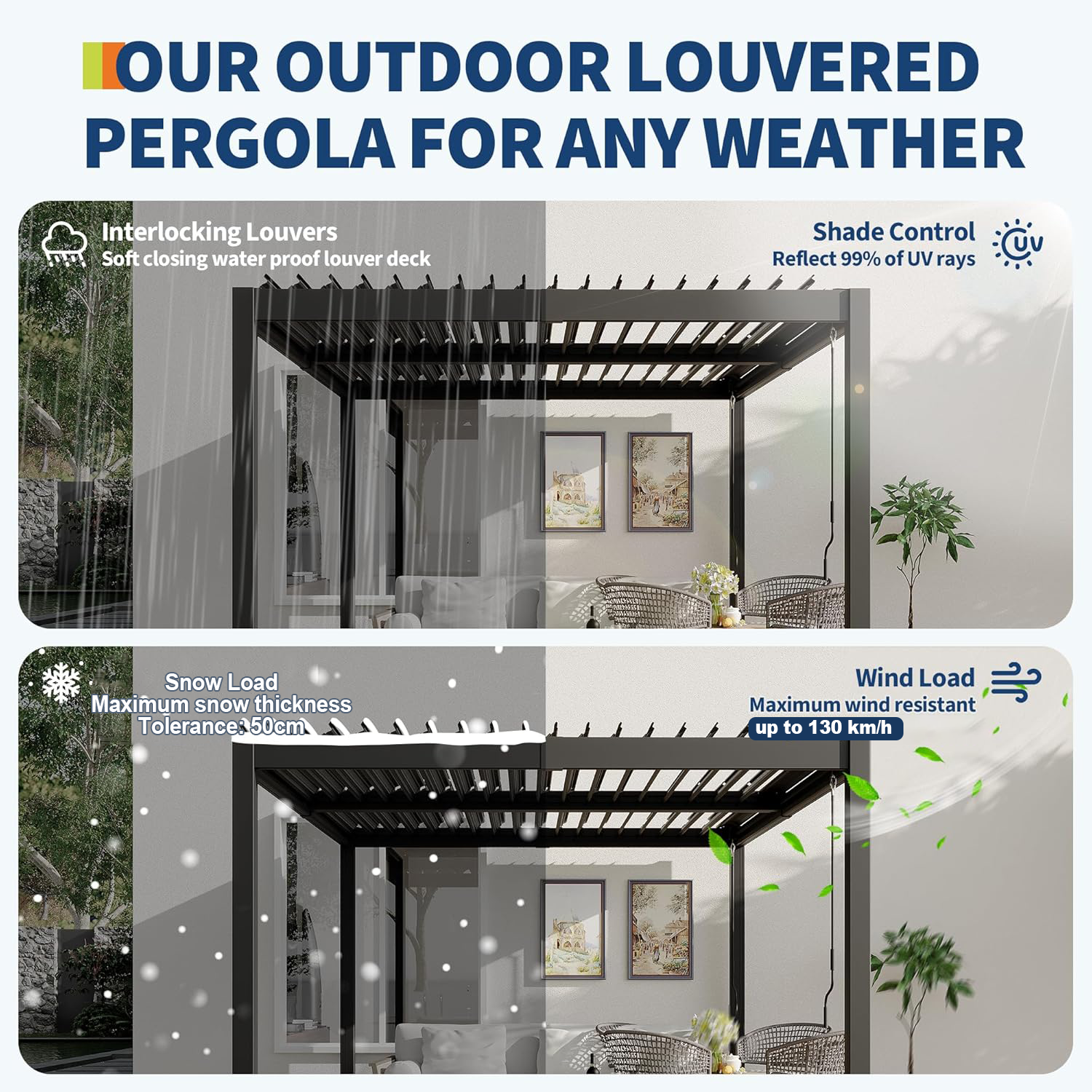

• Wind Rating: Independently certified up to 130 km/h (Bureau Veritas tested)

• Snow Load: Engineered for up to 100 kg/m² (equivalent to approx. 50 cm snow depth)

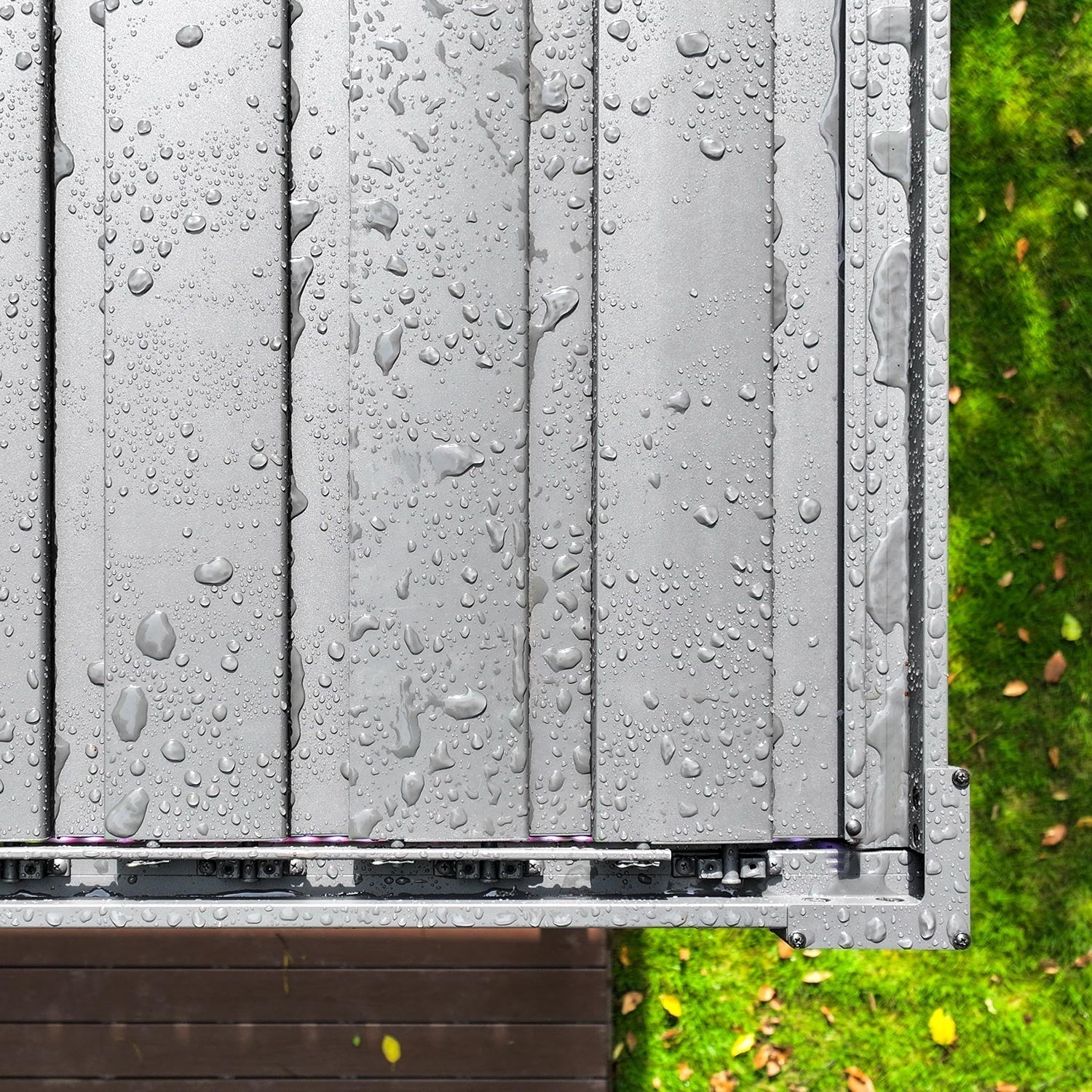

• Water Resistance: Sealed louver design with internal drainage channels — rain-ready when louvers are fully closed

• UV Resistance: High-durability powder coat rated for prolonged outdoor exposure

Available Sizes：

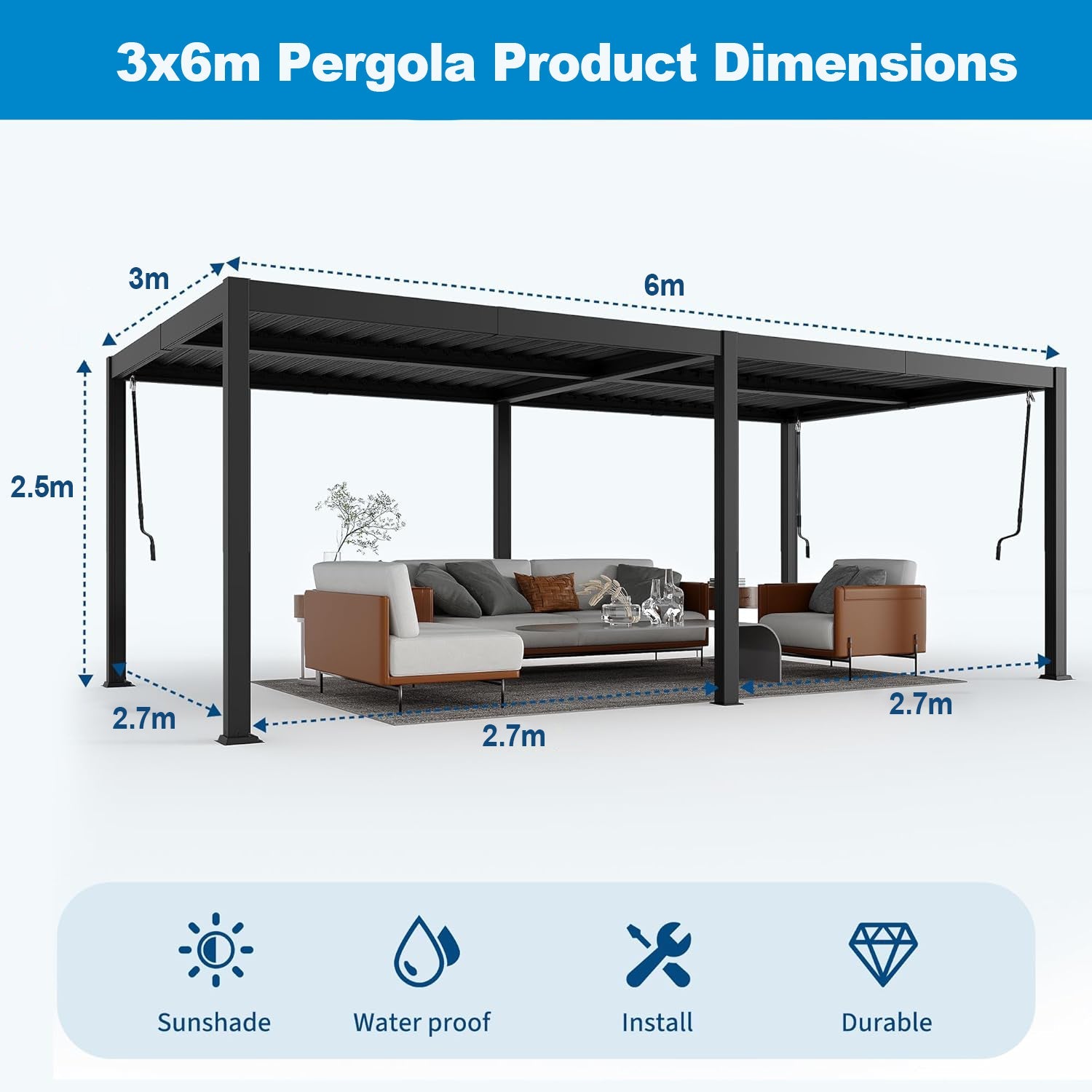

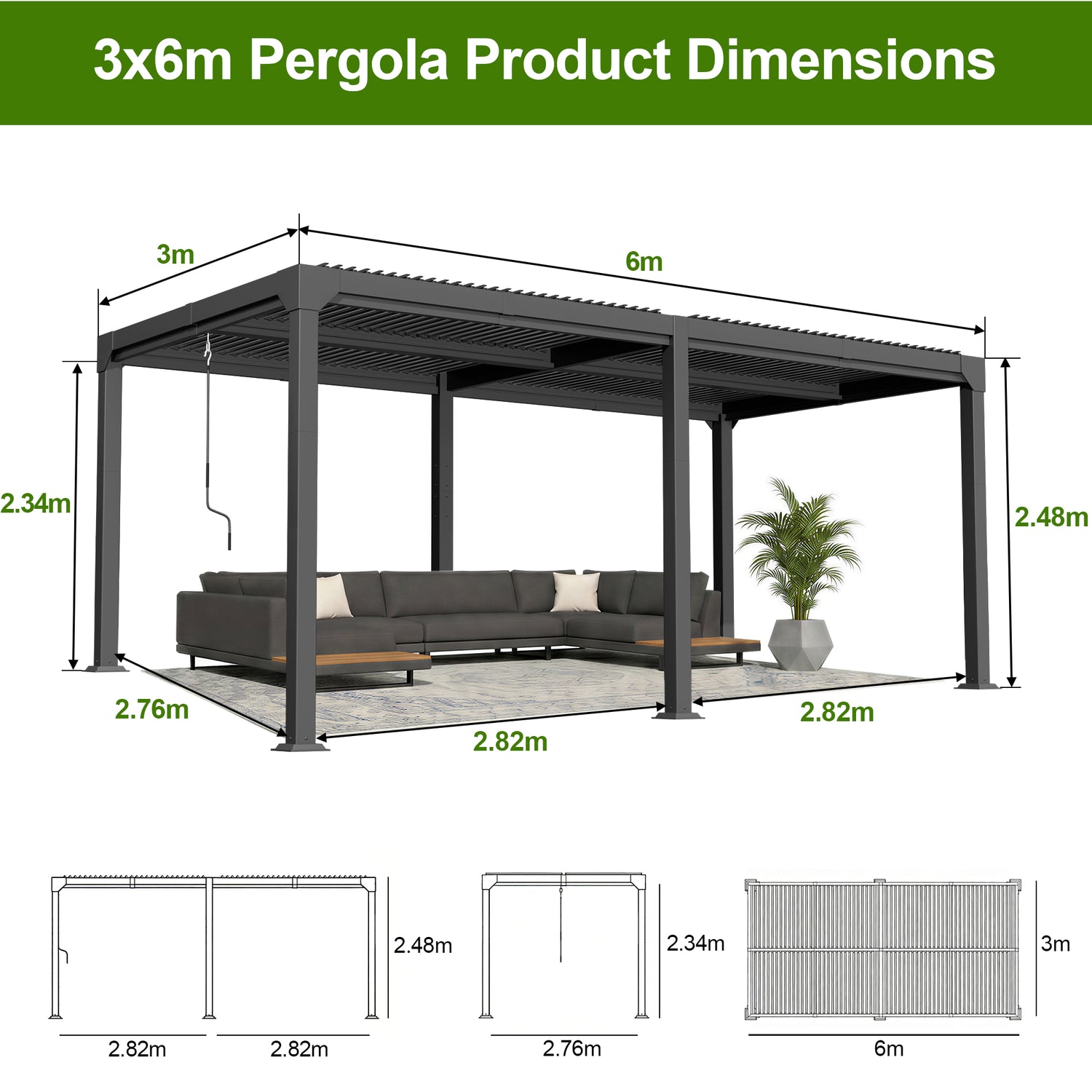

• 3m Width Series: 3 × 3 m | 3 × 4 m | 3 × 5 m | 3 × 6 m

• 4m Width Series: 4 × 4 m | 4 × 5 m | 4 × 6 m

Colours Available：

• Charcoal Grey

Warranty & Compliance：

• Structural Warranty: 5 Years peace of mind

• Finish Warranty: 2 Years on surface coating

Installation & Assembly

📥 Download the full graphical guide

• Assembly: Self-assembly

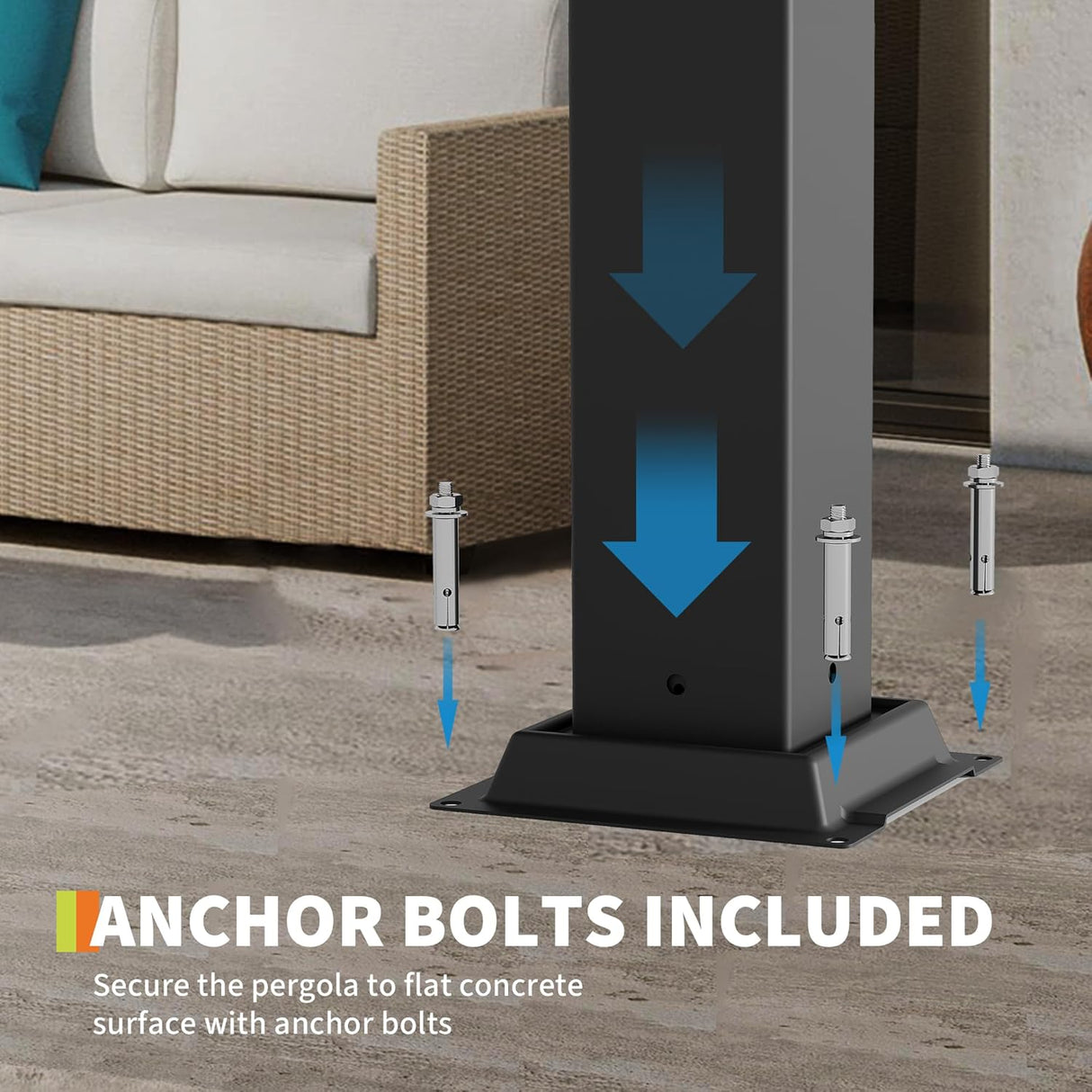

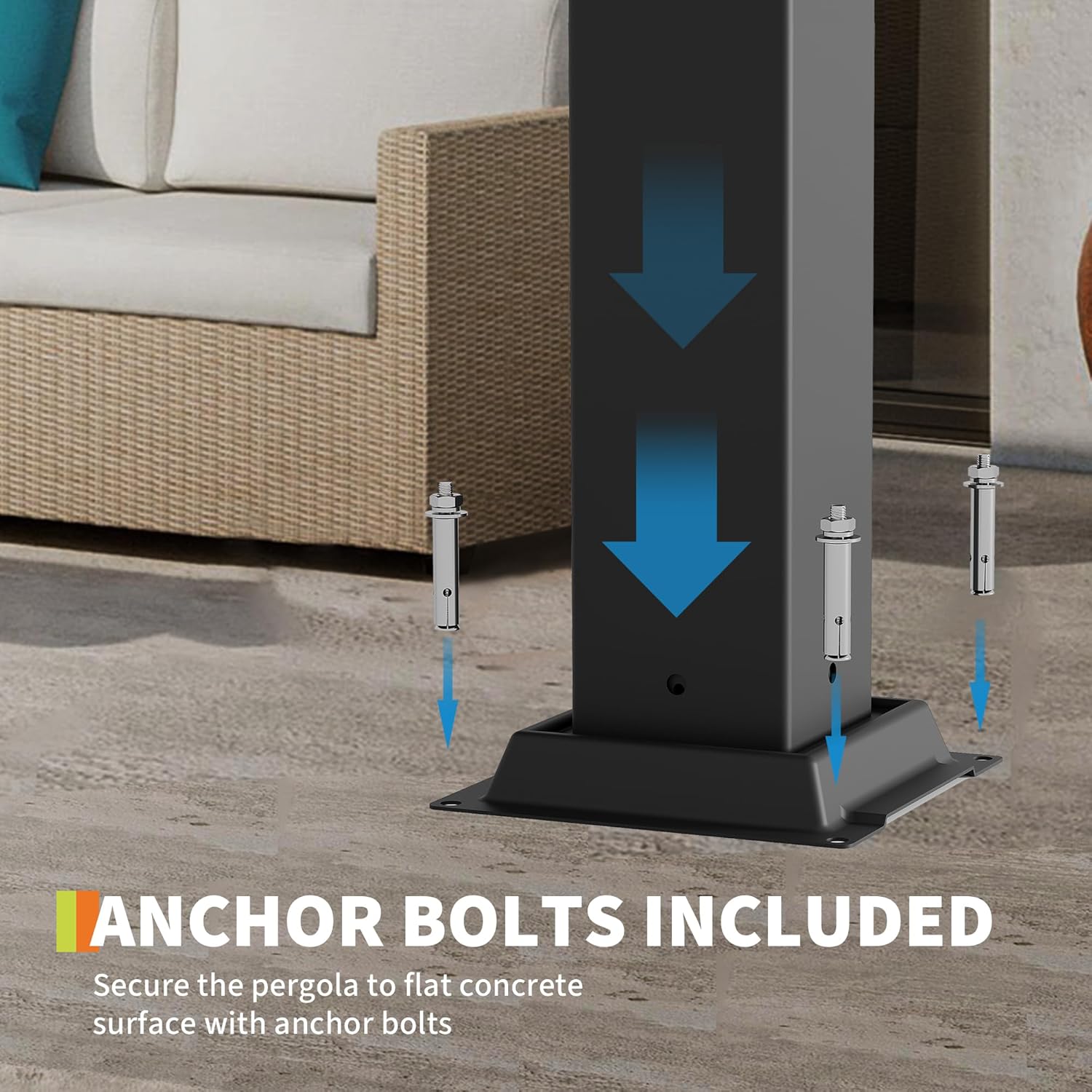

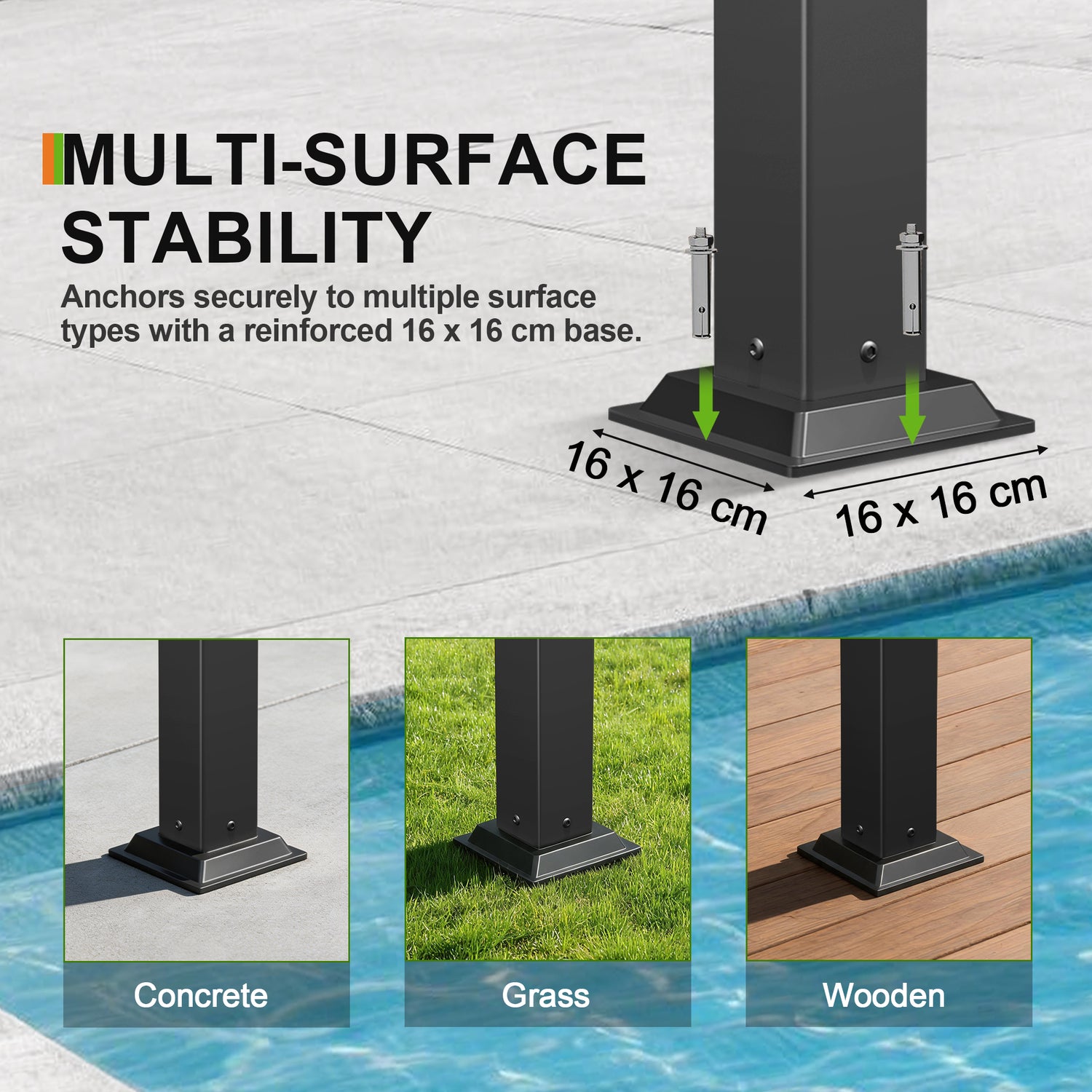

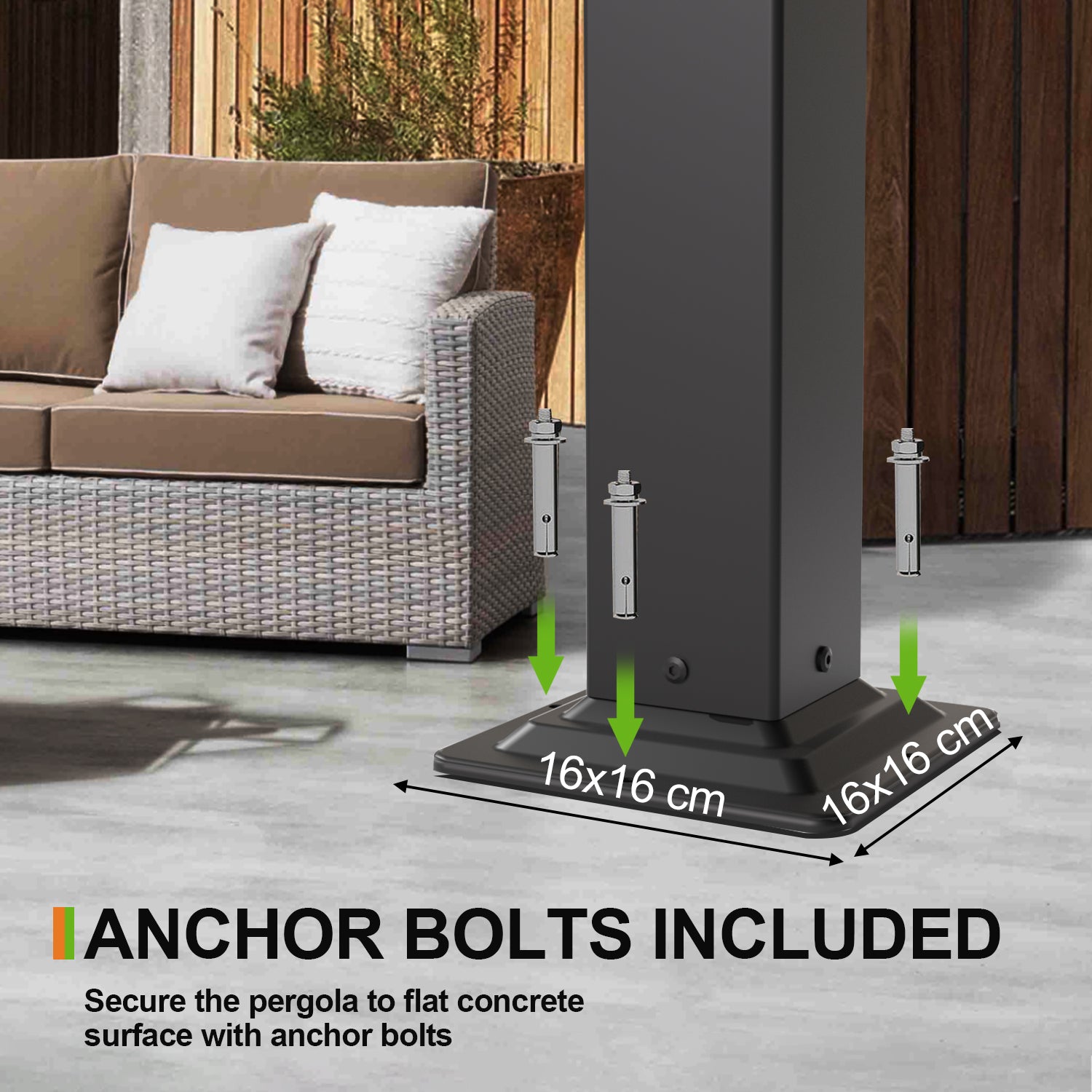

• Fixing Type: Ground-mounted with M10 x 100mm stainless steel hex expansion bolts (included).
• Installation Requirement: We recommend securing the pergola onto a flat concrete floor, or pre-embedding the posts into the ground, especially when the structure height reaches 2800mm.
• Recommended Installers: A minimum of 3 people is required throughout installation, with at least 2 people needed to safely lift and carry the components from the packaging.
• Please note this is a general-version manual. Specific installation details such as drainage direction may vary according to your confirmed order drawing — please review your order details before assembly, and re-read this manual fully before starting.

Before You Begin

• Unpacking: Check all parts against the packing list before starting. Please do not discard any packaging materials until installation is fully complete, in case parts need to be checked or exchanged.
• Surface Protection: Assemble the frame on a soft covering, such as a carpet or flattened cardboard, to protect the metal profiles from scratching during assembly.
• Protective Film: Fully remove the protective film from all components during installation. Once exposed to heat outdoors, the film becomes very difficult to remove.
• Warranty & Compliance: Please do not modify the product or substitute non-original accessories, as this will void your warranty. Patioslife is not responsible for damage resulting from incorrect assembly.
• If you have any questions during installation, please refer to the installation guide on the relevant product page of our website before proceeding.

Tools & Materials Required (Not Included)

Installation tools and silicone sealant are not included in the package and should be purchased locally.

• Silicone sealant (for weather-sealing the post caps)
• Impact drill with a 12mm masonry drill bit (drilling depth for anchor bolts: 100mm)
• Phillips (cross-head) screwdriver bit
• 4mm hex key and a 16mm hand spanner
• Iron hammer and rubber mallet
• Tape measure, spirit level, and marker pen
• Step ladder and safety helmet

Function Testing

Before completing final assembly, test the hand-crank mechanism by rotating the louvers fully open and closed. If the louvers turn smoothly, continue to the remaining steps. If not, recheck the connection bar and mechanical arm installation before proceeding — this ensures your pergola's manual louvre system operates correctly from day one.

Maintenance & Care

• Clean the surface at least once a year to preserve the powder-coated finish.
• Use only a soft sponge or non-abrasive cloth. Avoid rags, abrasive cleaning pads, wire wool, or coloured cloths.
• Do not use acidic or alkaline cleaning products. Rinse with low-pH clean water and wipe dry.
• If using a pressure washer, keep a safe distance and use an appropriate nozzle, water temperature, and pressure.
• Check all screws for tightness after installation, and re-check at least once a year.
• Regularly inspect seals for leaks, and clear leaves and debris from the gutters to keep drainage channels clear.
• While the drainage system is designed to be effective, it cannot guarantee complete waterproofing in extreme conditions. Damage from heavy rain or strong winds is not covered under warranty.
